MAIN B760M HUANANZHI B760M-D4 NEW

Model

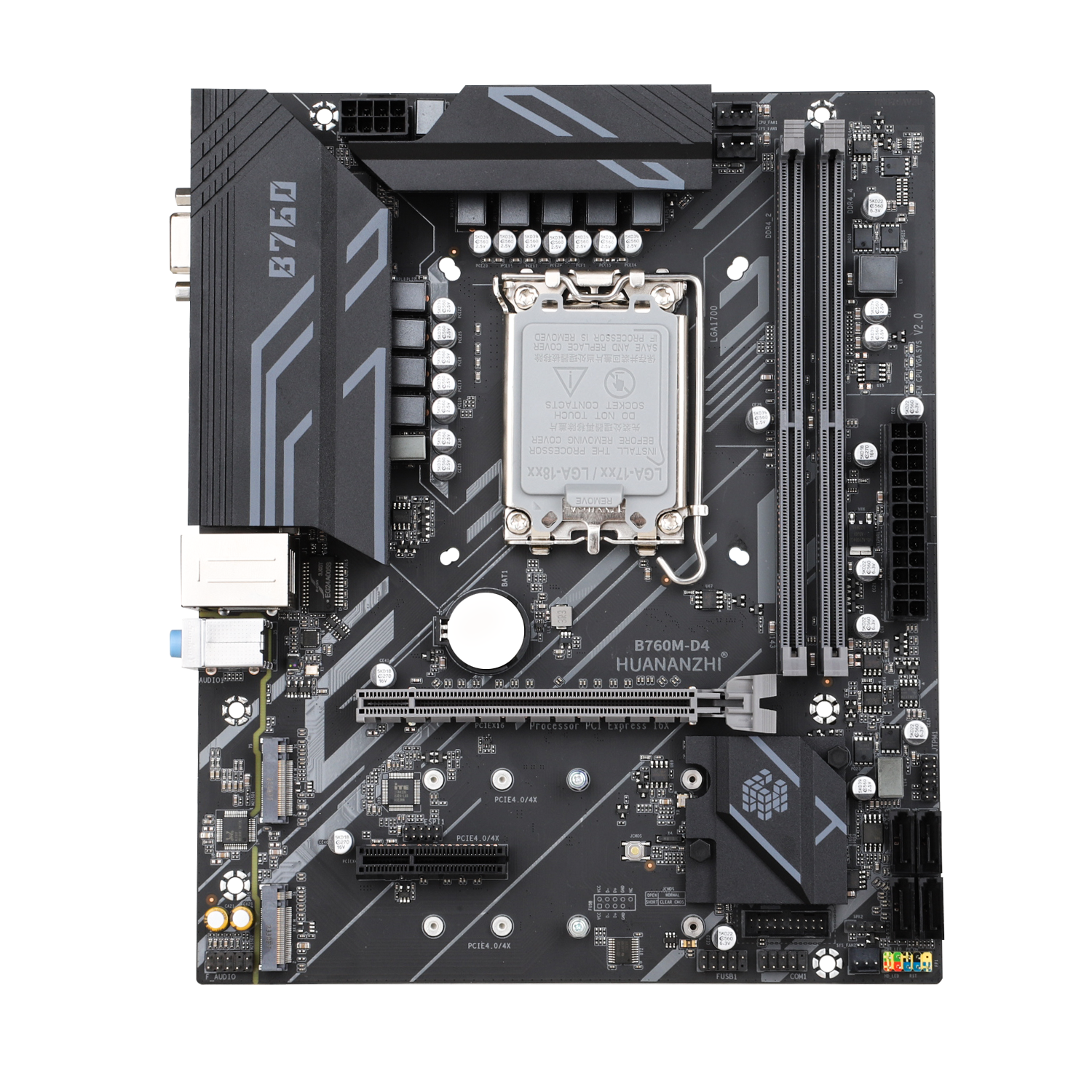

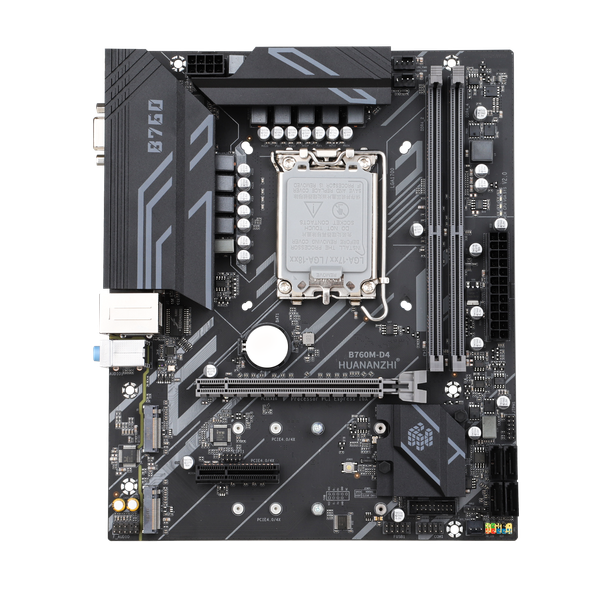

HUANANZHI B760M-D4 Motherboard

Main chipset

Intel B760

CPU Socket

Support Intel LGA1700

Memory slot

2 x DDR4 memory slot

Memory standard

Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB

Storage interface

4xSATA3.0 6Gbps interfaces

Expansion Slots

1xPCI Expressx16 4.0，1xPCI Expressx4 4.0

Expansion interface

2xM.2 22110 NVME PCIE X4 4.0

Soud Track

Realtek High Fidelity Audio

Network Card

Realtek Gigabit Network Card

Power interface

24pin+8pin

FAN PIN

1xCPU_FAN PIN，2xSYS_FAN PIN

power supply

10-phase power supply

PCB layers

6-layer PCB

Dimension

235*195MM M-ATX

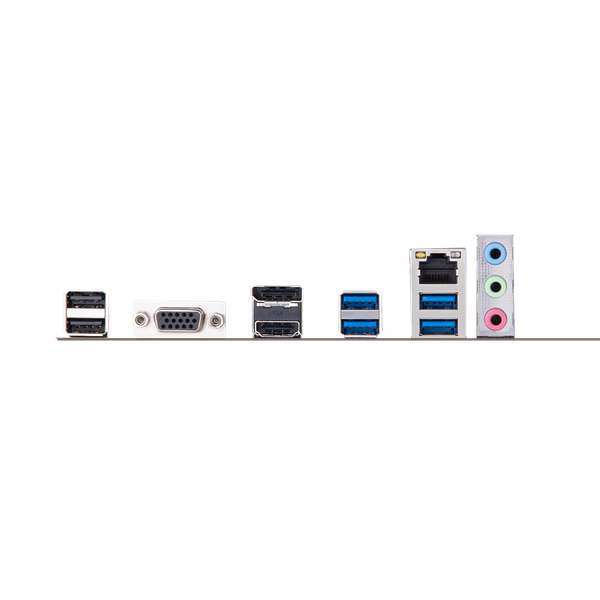

Rear panel interface

2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface

Front panel interface

1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin

Support system

Windows10 Windows11

BIOS

AMI UEFI BIOS

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
