Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

2 x Khe DIMM, tối đa 96GB, DDR5
Supports up to 9000+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Kiến trúc bộ nhớ kênh kép
DIMM Fit
Hỗ trợ mô-đun bộ nhớ Intel^® Extreme Memory Profile (XMP)
Hỗ trợ DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)

Intel Z890 Chipset
2 x PCIe 4.0x4 slot

Ổ cứng hỗ trợ

Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports
Support Intel Core Ultra Processors(Series 2)
Khe cắm M.2_1 (Key M), loại 2242/2260/2280/22110 (hỗ trợ chế độ PCIe 5.0 x4)
Khe cắm M.2_2 (Khóa M), loại 2242/2260/2280 (hỗ trợ PCIe 4.0 x4 chế độ)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)

Intel Z890 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x Cổng SATA 6Gb/s

Cổng kết nối (Internal)

Fan and cooling ports
1 x 4-pin CPU fan header
1 x 4-pin CPU OPT fan header
1 x 4-pin AIO pump header
2 x 4-pin chassis fan headers
2 x 4-pin Full Speed ​​Fan headers
1 x W_PUMP+ header
1 x Extra Flow Fan header
Power related
1 x 24-pin main power connector
2 x 8-pin +12V power connector
1 x 8-pin PCIe power connector
Related Storage
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Accessories
1 x 80 Light Bar jumper
3 x Accessible Gen 2 headers
1 x PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x Pause switch
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switches
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Boot button
1 x 10-1 pin system panel header
1 x Thermal sensor header
1 x Thunderbolt (USB4) header

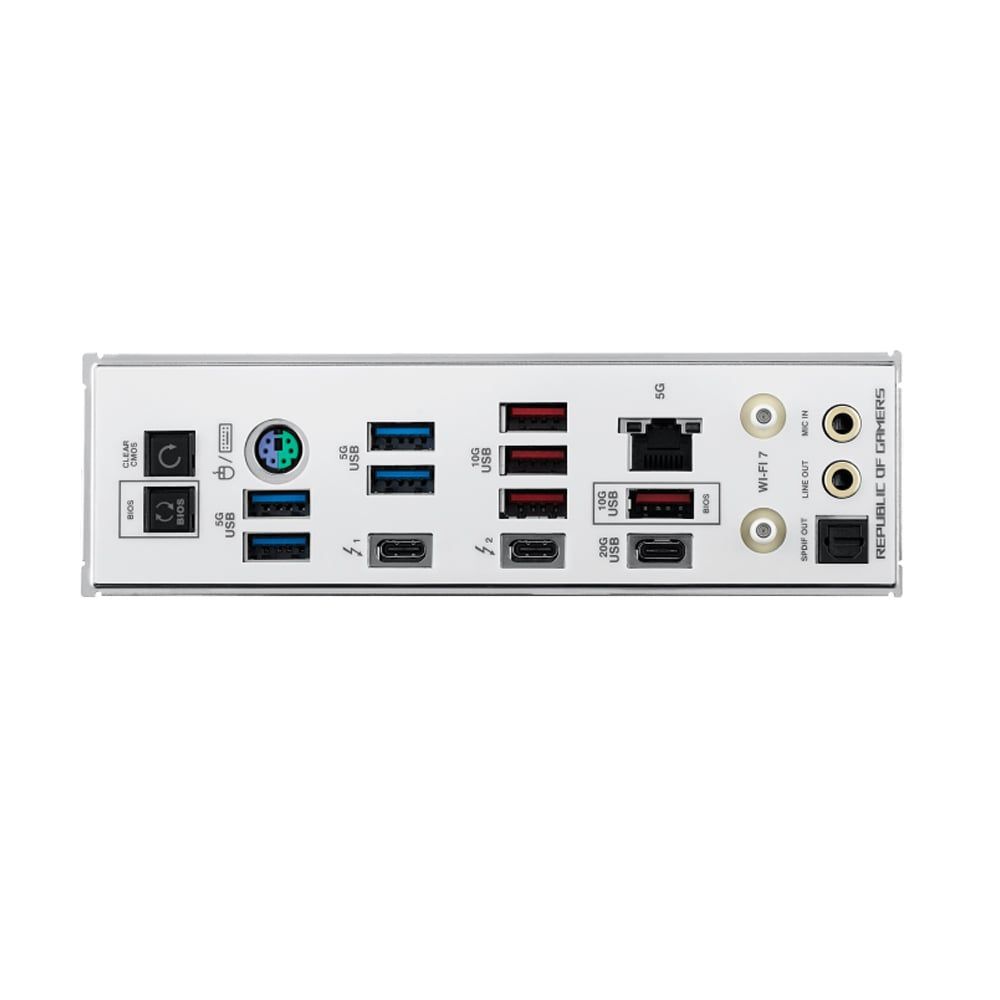

Cổng kết nối (Back Panel)

2 x Thunderbolt 4 ports (USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
4 x USB 10Gbps port (4 x Type-A)
4 x USB 5Gbps port (4 x Type-A)
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x PS/2 port for keyboard/mouse combo

LAN / Wireless

LAN

1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless

Intel Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
