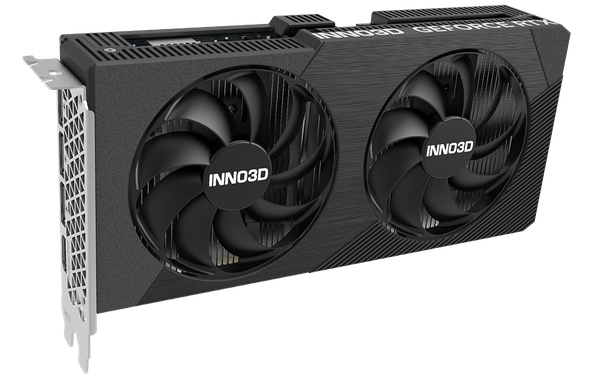

Card màn hình INNO3D GeForce RTX 5050 TWIN X2 -

Unique Feature

Rock-Solid Durability
- 4 Power Phase
EZ Update
- ASRock Auto Driver Installer

CPU

- Supports 10th Gen & 11th Gen Intel^® Core™ Processors (LGA1200)
- Supports Intel^® Turbo Boost Max 3.0 Technology

Chipset

- Intel^® H470

Bộ nhớ RAM

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel^® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots


* 11th Gen Intel^® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium^® and Celeron^® support DDR4 2666 natively.
10th Gen Intel^® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 2666 natively.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Card đồ họa

- 2 x HDMI
Intel^® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
Intel^® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz


* Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types.

Card âm thanh

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Khe cắm

Intel^® 11th Gen & 10th Gen Processors:
- 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel^® H470 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)**


* Intel^® 11th Gen Processors support PCIe 4.0 x16
Intel^® 10th Gen Processors support PCIe 3.0 x16
** Supports NVMe SSD as boot disks

Kho tiền

Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors


* Supports Intel^® Optane™ Technology
Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)


* All USB ports support ESD Protection

Cổng kết nối

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)


*CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1~2/WP support the fan power up to 2A (24W).
CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

Bảng điều khiển Input/Output phía sau

- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 2.0 Ports
- 4 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Phần mềm và UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash


*These utilities can be downloaded from ASRock Live Update & APP Shop.

Phụ kiện

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Chuẩn vỏ máy

- Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm

Hệ điều hành

- Microsoft^® Windows^® 10 64-bit / 11 64-bit

Chứng nhận

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
