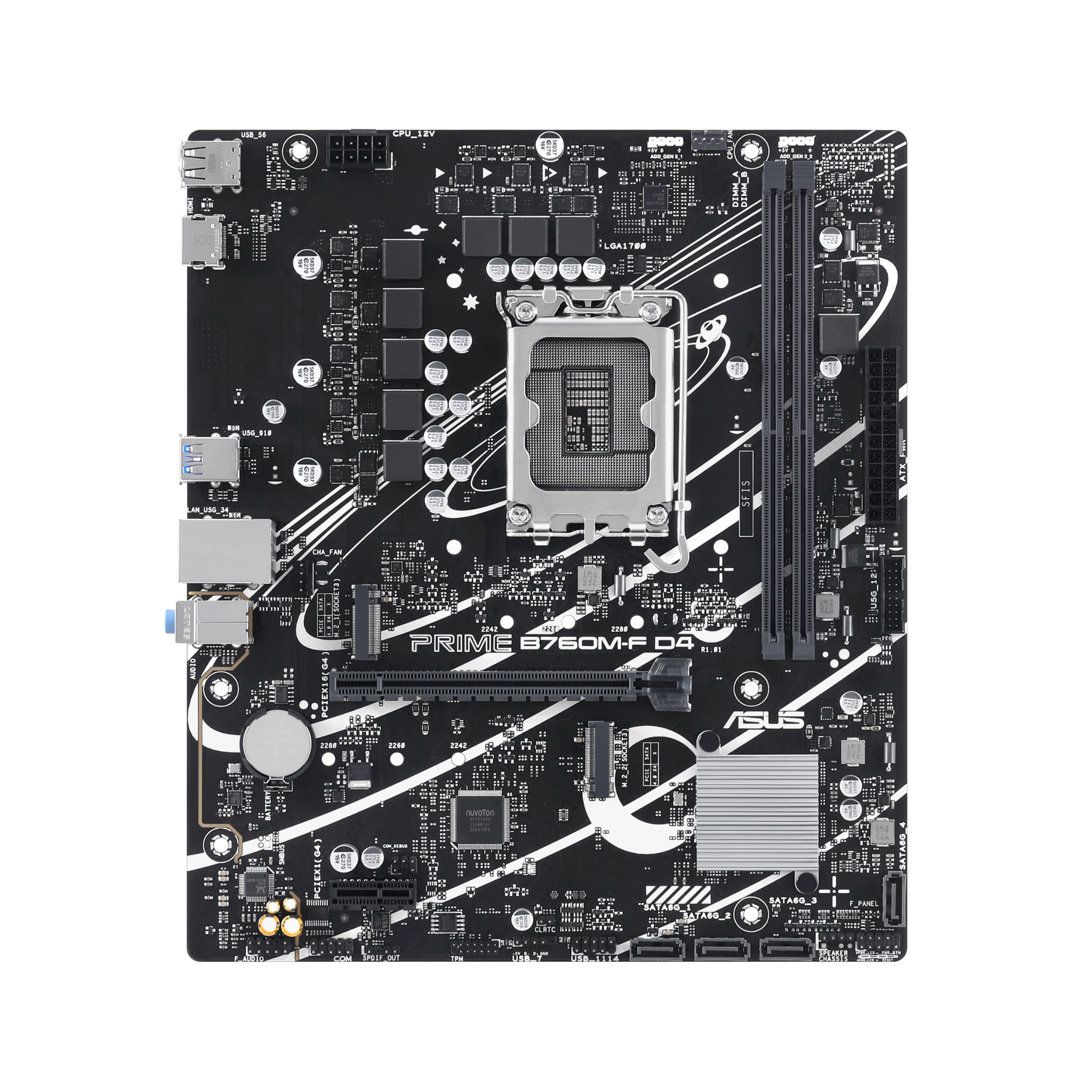

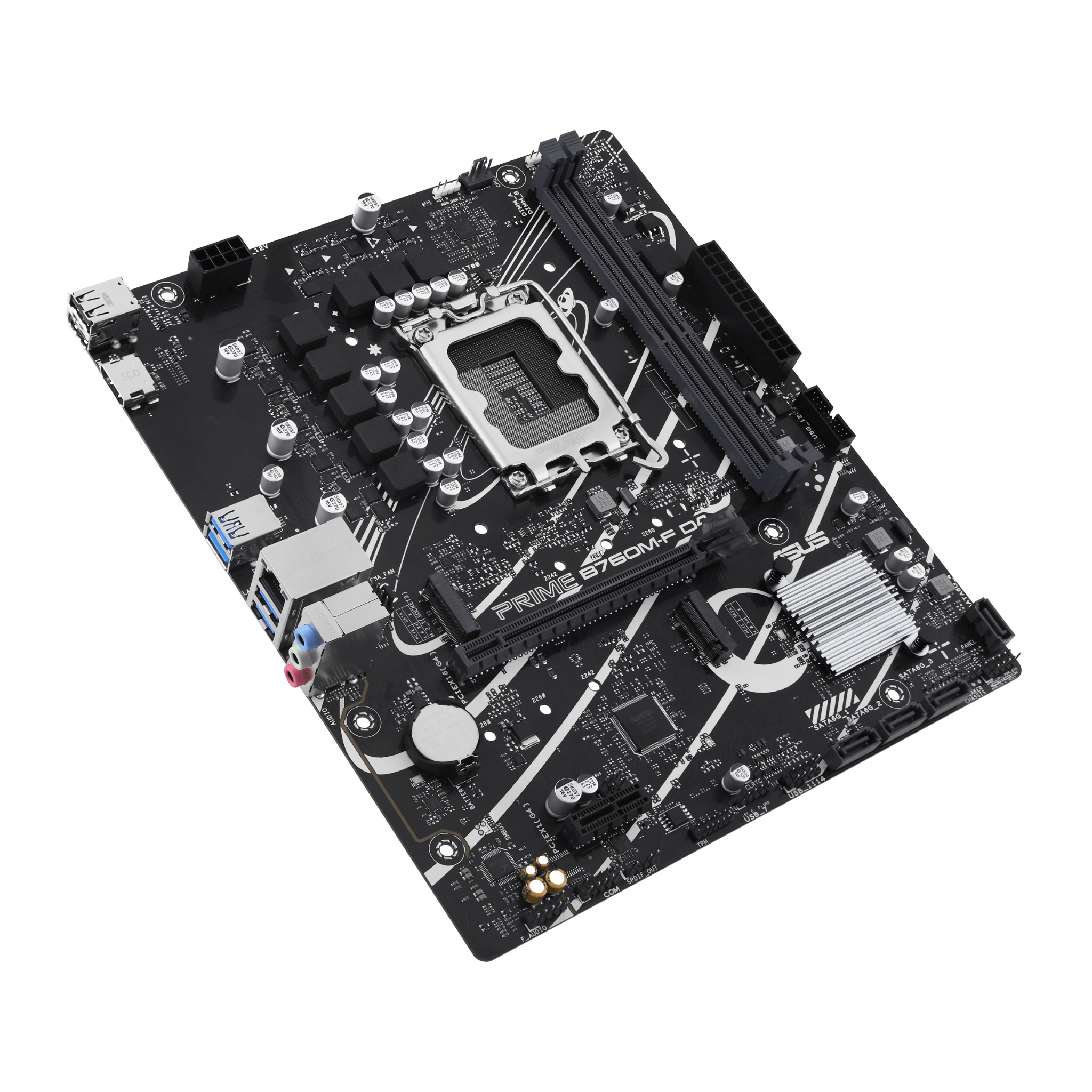

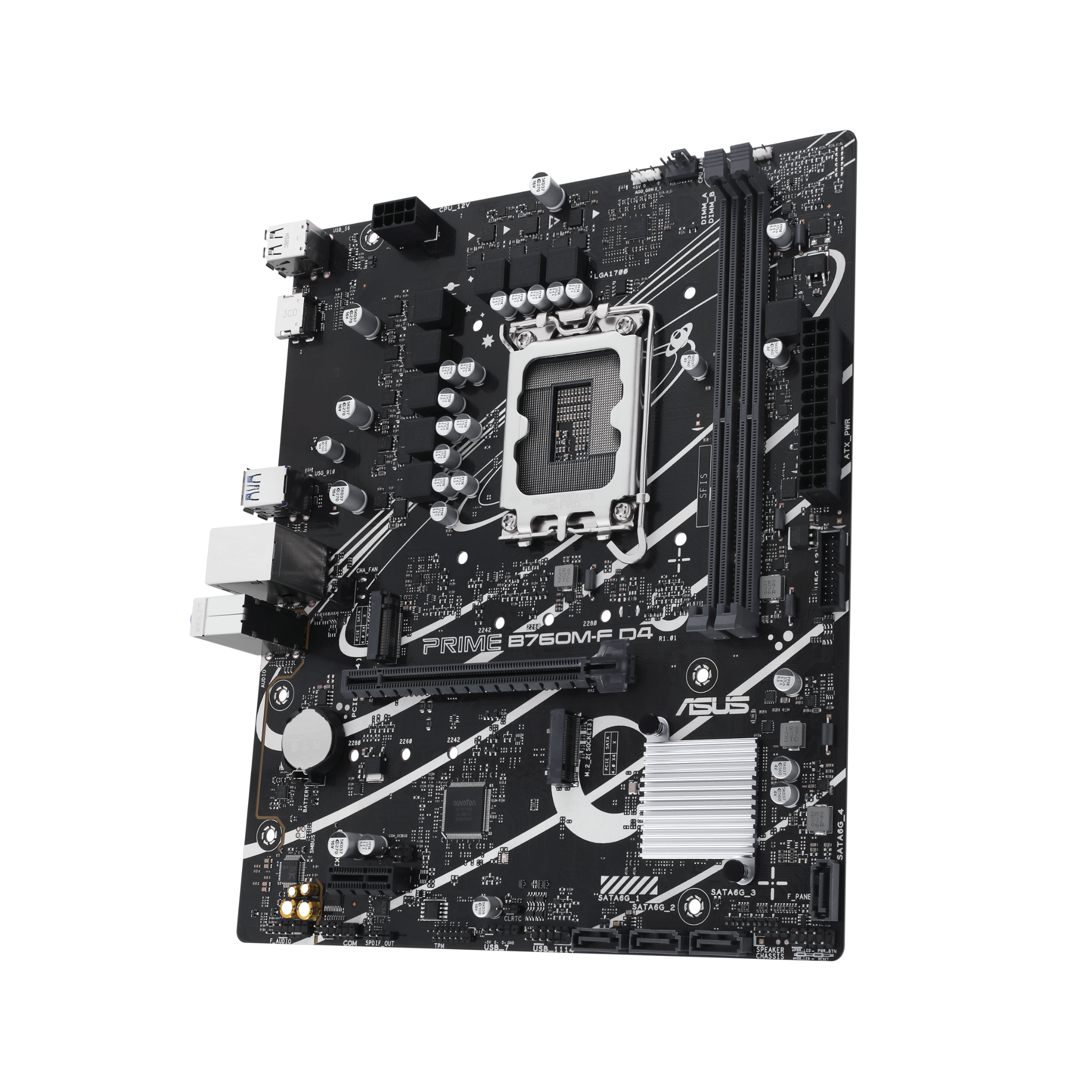

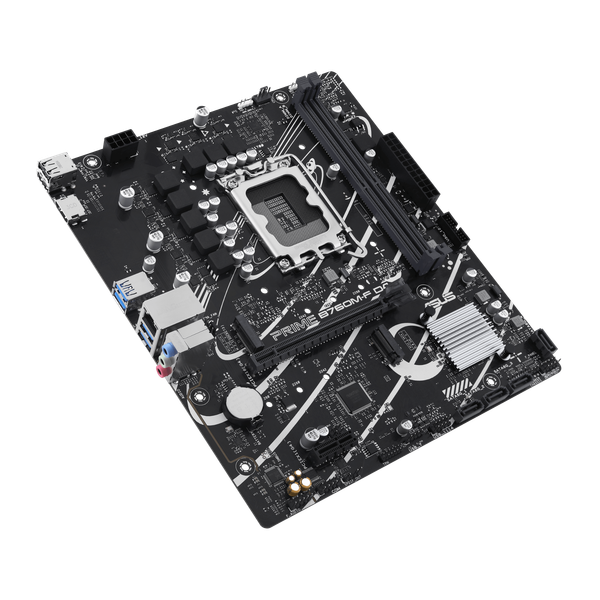

Bo mạch chủ ASUS B760M PRIME MF DR4

Socket: LGA 1700 - Compatible with 14th, 13th, and 12th Gen Intel Core processors

Memory:

• 2 DIMM slots (supports up to 2 RAM sticks)
• Supports DDR4 memory
• Maximum RAM capacity: 64GB
• Speeds supported:
  • Up to 5333 MHz (overclocked)
  • Down to 2133 MHz
  • Non-ECC, Un-buffered

Storage:

• 2x M.2 slots (M key, type 2242/2260/2280) supporting PCIe 4.0 x4 mode for high-speed storage
• 4x SATA 6Gb/s ports for traditional hard drives and SSDs

Graphics:

• 1x HDMI port for connecting a monitor

Expansion Slots:

• 1x PCIe 4.0 x16 slot for graphics cards
• 1x PCIe 4.0 x1 slot for other expansion cards

Networking:

• 1x Realtek 1Gb Ethernet port for wired internet connection

USB:

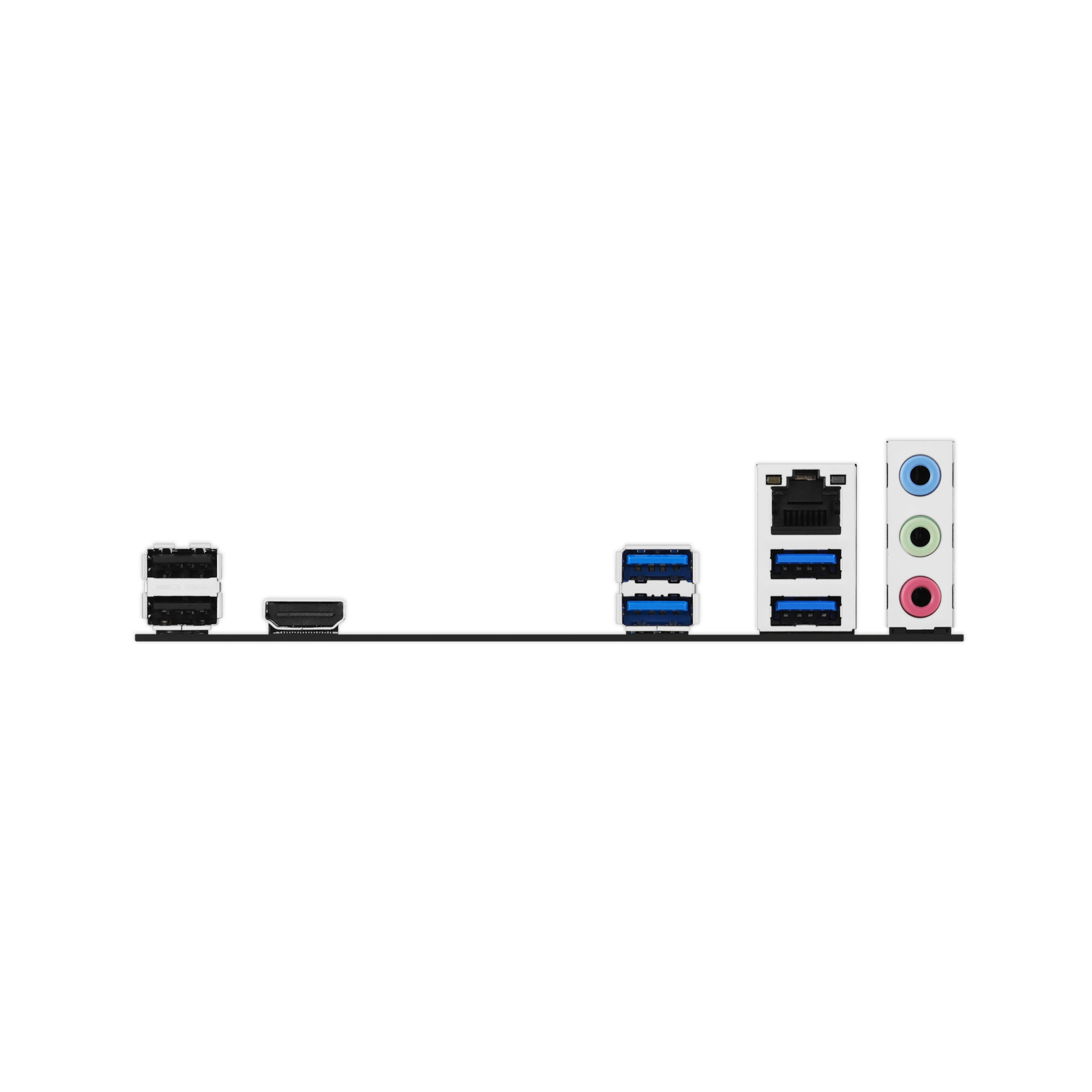

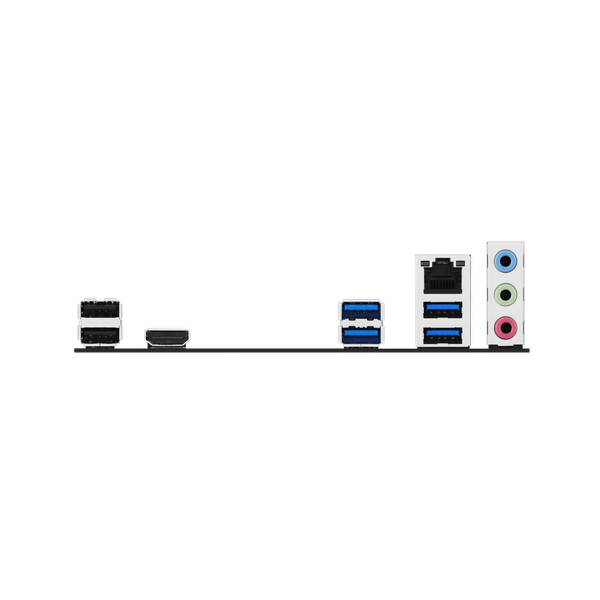

• Rear Panel:
  • 4x USB 5Gbps ports (Type-A)
  • 2x USB 2.0 ports (Type-A)
• Front Panel (via headers):
  • Supports up to 2 additional USB 5Gbps ports
  • Supports up to 3 additional USB 2.0 ports

Audio:

• Realtek 7.1 Surround Sound audio codec
• Supports high-quality audio playback (up to 24-Bit/192 kHz)
• Audio enhancements like shielding and dedicated capacitors

Form Factor:

• micro-ATX (compact size) - Dimensions: 9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Operating System:

• Windows 11 and Windows 10 (64-bit)

Additional Features:

• Fan headers for CPU and chassis cooling
• Addressable Gen 2 headers for RGB lighting control
• TPM header for security features
• Clear CMOS header for resetting BIOS settings

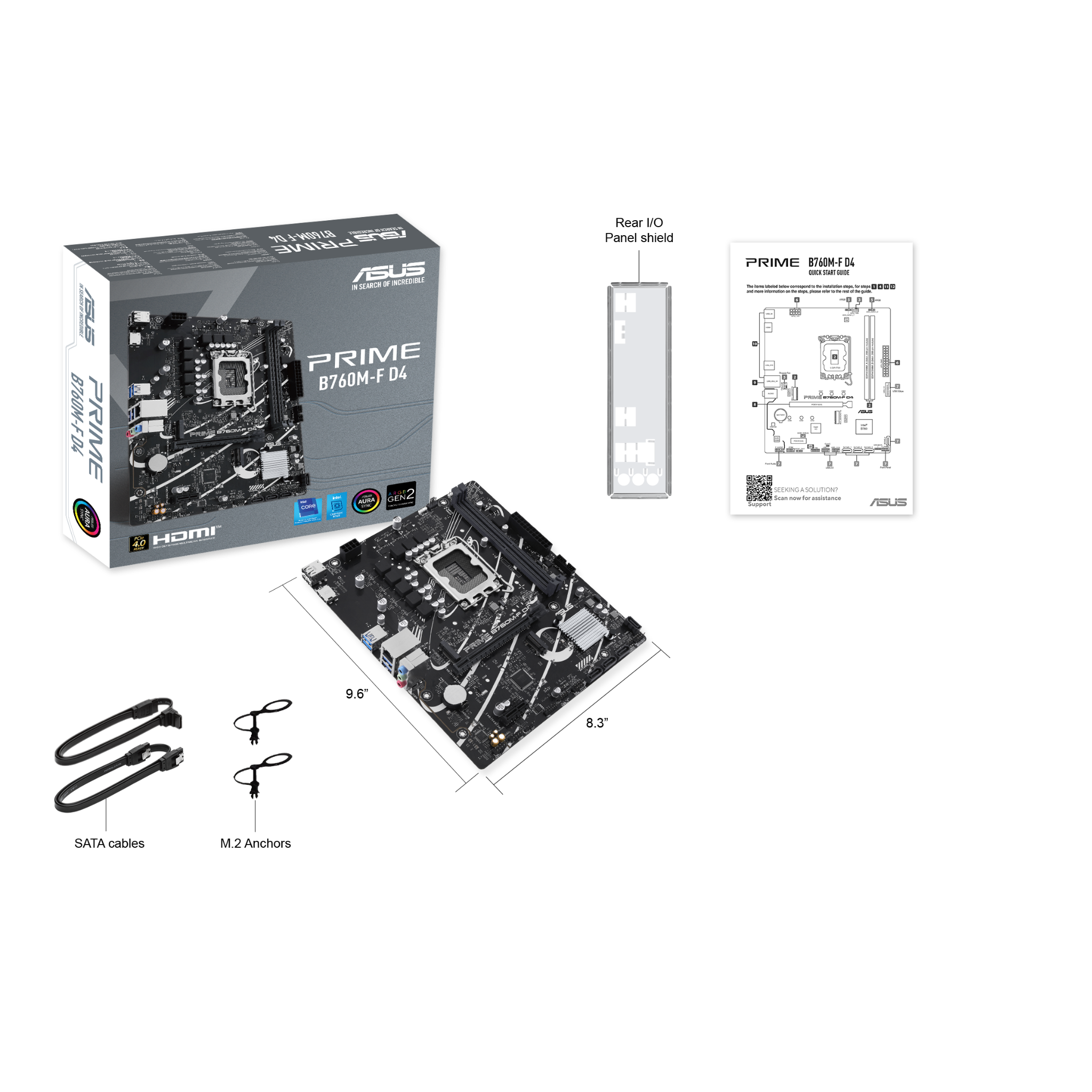

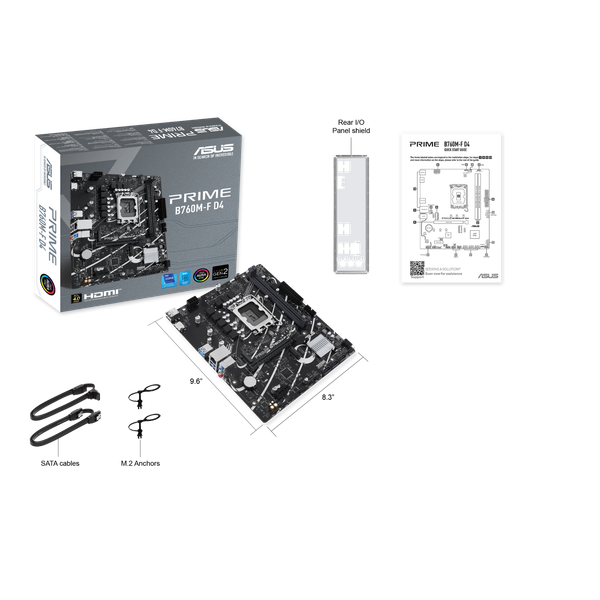

Accessories:

• SATA cables
• I/O shield
• M.2 anchors
• Quick start guide
