CHIPSET | Intel H610 |
---|---|
PROCESSOR | The 13th and 12th generation Intel supporting the LGA 1700 slot on the adapter motherboard ® Core TM, Pentium ® And Saiyang ® Processor (* Please visit the official website of Qicaihong www.colorful.cn for the latest processor support list) |
MEMORY | Two DDR4 memory slots are provided, which can support up to 64 GB of memory (a single slot can support up to 32 GB of memory) – DDR4-3200/2933/2666/2400MHz memory – support dual-channel memory technology (* Please visit the official website of Rainbow for the latest memory compatibility list) |
SATA PORTS | A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported – M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |

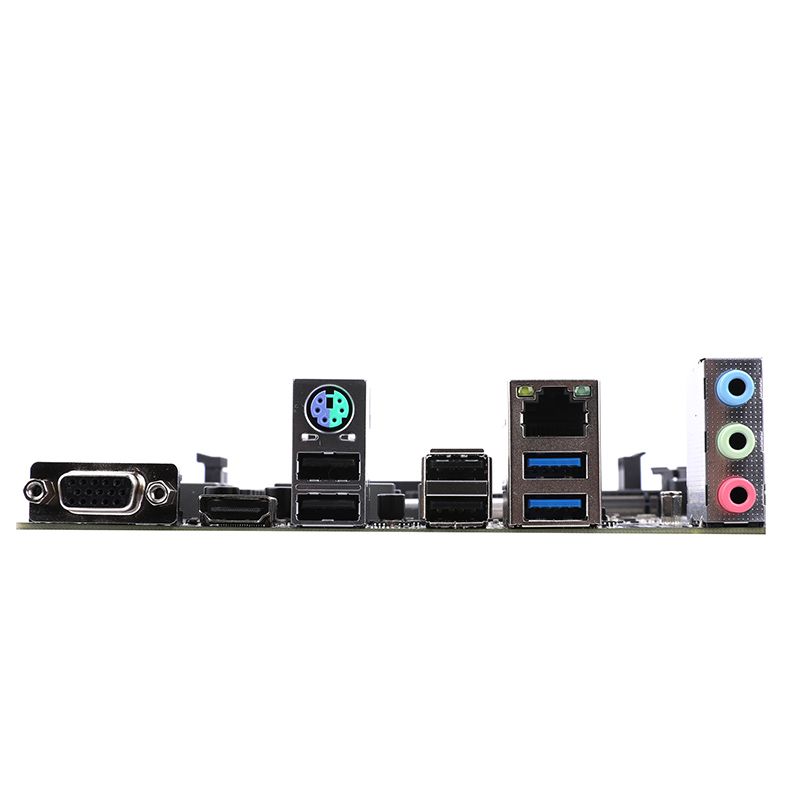

BOARD I/O | Rear I/O interface: – 1 PS/2 interface – 4 USB 2.0 interfaces – 2 USB 3.1 Gen 1 Type-A interfaces – 1 HDMI 2.0 interface, Up to 4K 60Hz resolution – 1 VGA interface – 1 Gigabit network interface – 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: – 1 CPU fan pin – 2 system fan pins – 1 water cooling pump pin – 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces – 1 USB 3.1 Gen 1 pin can expand 2 USB 3.1 Gen 1 Type-A interfaces – 1 front audio pin – 1 front panel pin – 1 speaker pin – 1 Clear CMOS jumper – 1 COM port pin – 1 BIOS burner pin – 1 POST Card pin – 1 ME write protection jumper |
EXPANSION SLOTS | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
BIOS | 128M UEFI, supporting multiple languages |
POWER MANAGEMENT | Support S3, S4, network S5 wake-up, support timed startup, call startup |
HARDWARE MONITOR | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
LAN | RTL8111H Gigabit network card |
AUDIO | 5.1 sound card |
CONFIGURATION | M-ATX 225mm x 194mm |
