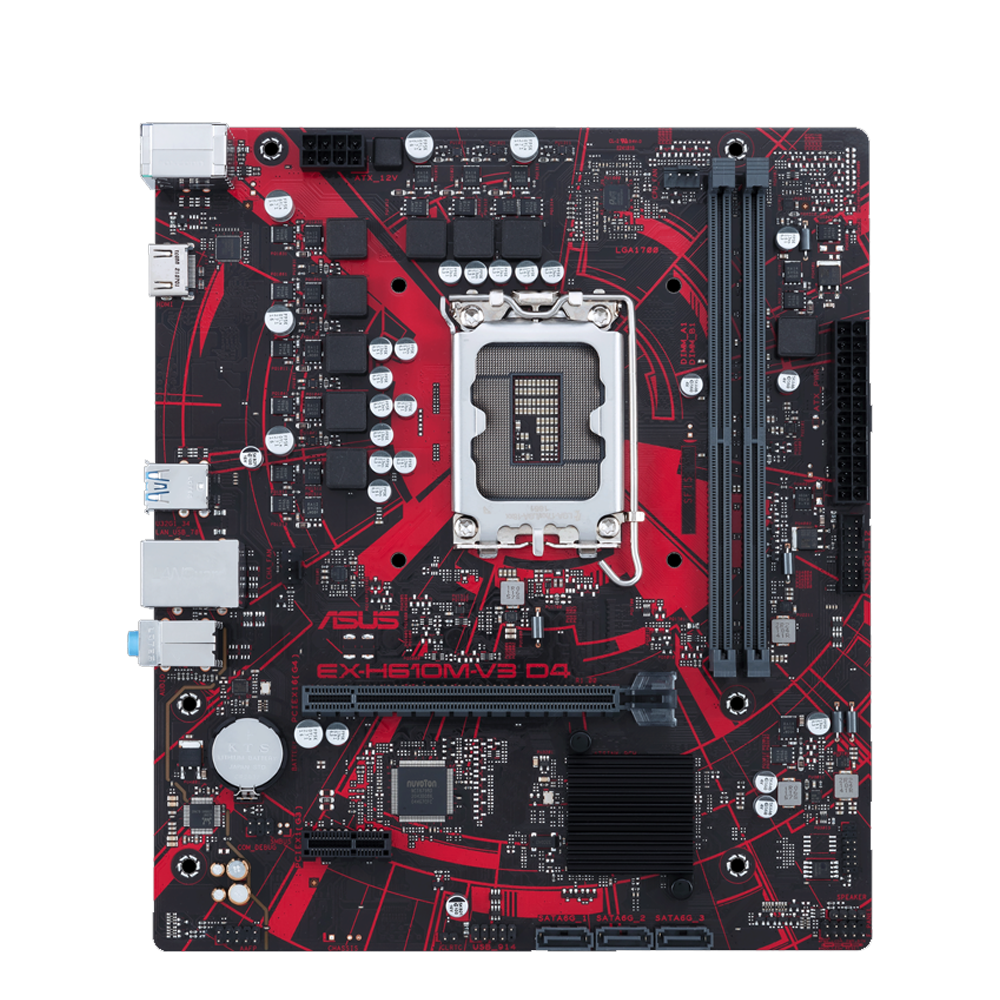

MAIN H610M ASUS EX - V3 D4 NEW

Thương hiệu: ASUS
|
Loại: MAIN NEW
1,750,000₫
Tiêu đề:
Cam kết bán hàng
  • Hàng chính hãng. Nguồn gốc rõ ràng Hàng chính hãng. Nguồn gốc rõ ràng
  • Giá ưu đãi Giá ưu đãi
  • Giao hàng nhanh Giao hàng nhanh
  • Chính sách đổi trả rõ ràng Chính sách đổi trả rõ ràng
Mô tả sản phẩm

Thông số kỹ thuật

Bảo hành36 tháng
CPUIntel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel® B660 Chipset
Bộ nhớ2 x DIMM, Max. 64GB, DDR4

5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Đồ họa1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.
Khe cắm mở rộngIntel® 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel® B660 Chipset

2 x PCIe 3.0 x1 slots
Lưu trữTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet1 x Realtek 1Gb Ethernet
USBRear USB (Total 6 ports)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Premium audio capacitors

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Cổng I / O ở trongFan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header
Kết nối bảng phía sau4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI® port

3 x Audio jacks

1 x Realtek 1Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Hệ điều hànhSupport for Windows 11 64-bit
Support for Windows 10 64-bit
Dạng thiết kếmATX Form Factor
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
đánh giá trên sản phẩm “MAIN H610M ASUS EX - V3 D4 NEW
